HDMI MODULATOR 3in1 quad+

EDISION Quad-channel digital modulator. 4x HDMI inputs to 2x DVB-T, DVB-C or ISDB-T channels in one RF output, VHF/UHF MPEG4 FULL HD, with pre-configured IDs and easily selectable programming. Up to 4x HDMI signal inputs from any HDMI source (Terrestrial & Satellite TV receivers, cameras, DVD's, DVR's, Digital Signage, etc) is converted to 2 x up to FULL HD 1080p 60FPS, Digital Terrestrial DVB-T/ISDB-T or Cable DVB-C MPEG4 signal outputs, in VHF/UHF band. Produces excellent quality digital COFDM/QAM signal output, combined with reliable functionality and stable operation, under all configurations. With 4x USB ports for fast CONFIG DATA function for each sub-unit. Plus, its FAST PRE-CONFIG function offers 50 pre-configured and easily selectable ID's for quick and easy programming. The selection of each one of the 4 IDs per quad unit, is made for each individual sub-unit on its own Display/Mod and the configuration of the 2 output channels, from the menus and displays of Modulator Displays 1 & 3.

Technical features:
- Digital quad-channel HDMI Modulator to DVB-T, DVB-C or ISDB-T
- INPUT signal: 4x HDMI v1.4a
- RF OUTPUT signal: 2 x Digital Terrestrial DVB-T, ISDB-T or Cable DVB-C MPEG4
- Frequency Range DVB-T: VHF (CH.5-12) & UHF (CH.21-69)
- Frequency Range ISDB-T: VHF (CH.7-13) & UHF (CH.14-69)
- Frequency Range DVB-C: 47-862 MHz
- High Video Resolution up to FULL HD 1080p 60FPS
- RF Output Level: Factory default 90 dbμV, with adjustable gain up to +6dbμV or attenuation up to -14dbμV
- MER more than 35dB
- Symbol Rate: 6MHZ: Up to 2x8000 MBPS, 7MHZ: Up to 2x9000 MBPS, 8MHZ: Up to 2x10000 MBPS
- Bandwidth: 6MHZ, 7MHZ, 8MHZ
- Video Encoder MPEG1, MPEG2 MP@HL , MPEG4 SP@L3 to ASP@L5, MPEG4 AVC HP @level4.1, MP@level4.1
- Audio encoder MPEGI L1/2, MPEGII LII, AAC LC, HE-AAC v1/v2 (2-CH)
- Processor System: 4x 800MHz 32Bit ARM9 CPU
- Memory 4x DDRIII 16bit 1GBit/s (Embedded) & NOR Flash 32Mbit
- Fast Pre-Config Function / 50 IDs Selectable
- Backup Config File by USB (CFG)
- Software Upgrade by USB
- Ports: 4x HDMI IN, RF OUT, 4x USB, SERVICE PORT, DC 12V/4.5A, GROUND
- Four (4) x 4-digit LED displays
- Four (4) x 6-display buttons: Menu/OK, Left, Right, Up, Down

General:
- Power Supply: 100 - 240 AC 50/60Hz
- Input Voltage: DC 12V 4.5A
- Power Consumption: max. 20.0W
- Operating Temperature: 0°C ... +50°C
- Storage Temperature: -20°C ... +70°C
- Humidity Range: 10% ... 85% RH, non-condensing
- Dimensions: 255x195x40 mm
- Weight: 1,64 kg
- Color: black
- Warranty: 2 years

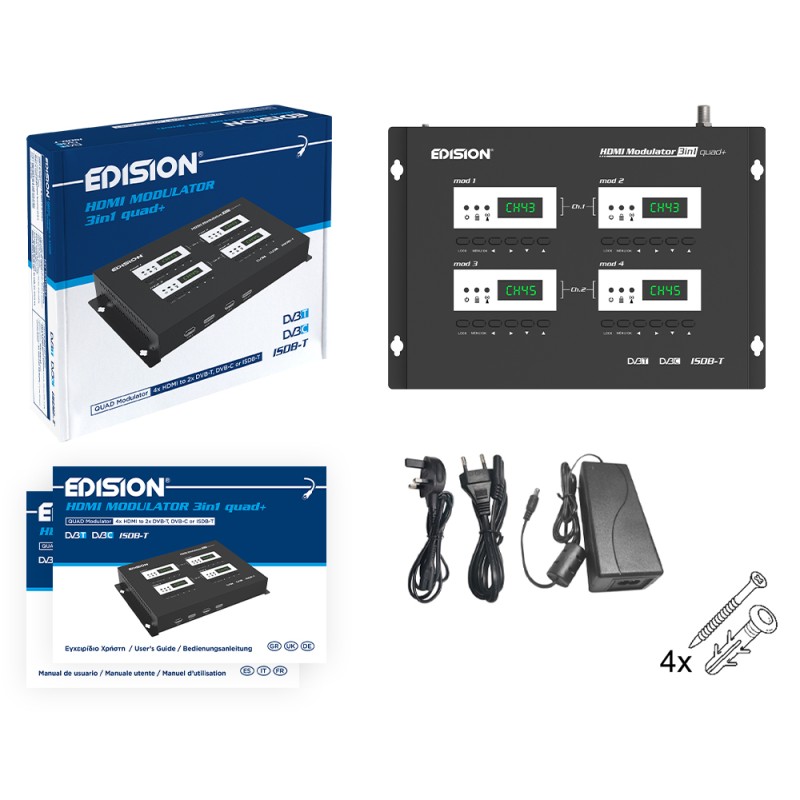

Package includes:
- HDMI Modulator 3in1 quad+
- Power Supply Unit 12V/4.5A universal EU/UK
- Upat and mounting screws
- User Manual GR/EN/DE/ES/IT/FR
