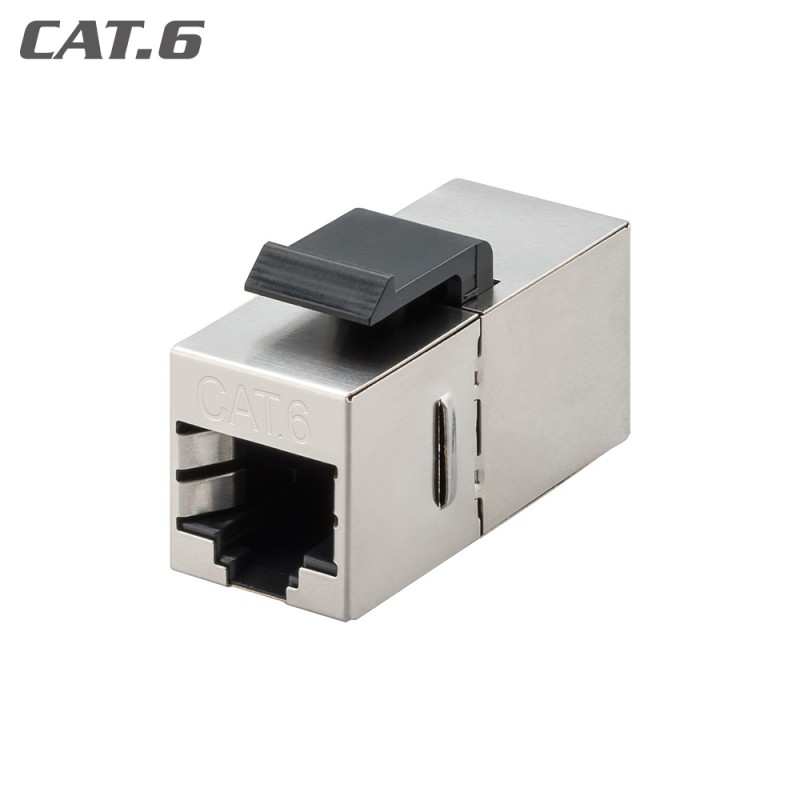

96100 Keystone Jack Coupler RJ45 STP Cat.6 Female to Female

The 96100 Keystone Jack Coupler RJ45 STP Cat.6 Female to Female, is a modular connection system for standard RJ45 connectors. It is used to extend and connect 2 network cables with RJ45 plugs. The Snap-in system allows a wide variety of connections, e.g. RJ45 connectors (CAT 5, CAT 6), while it is suitable for 19.2 x 14.9 mm Keystone ports. One of its features is that it has an Ethernet connector with a robust metal housing and shielding for perfect transmission of electrical signals. The RJ45 connectors are suitable for PoE+ according to the IEEE 802.3at standard, while the CAT 6 connector is provided with 3΅ gold-plated contacts and 1:1 pin assignment. With STP shielding.

Technical features:
- Specification CAT 6, STP, tool-free mounting
- Keystone Jack Coupler 2x RJ45 STP Cat.6 Female to Female
- Suitable for Keystone ports of 19.2 x 14.9 mm
- Keystone grid (14,9 x 17,0 mm)
- PoE and PoE Plus according to IEEE802.3at: Yes
- Shielding: STP
- Outer diameter cable: 5.0 mm - 9.0 mm
- Rated voltage: 125 V, Rated current: 1.5 A
- Contact resistance: 100 mΩ max.
- Insulation resistance: 1000 MΩ min. @ 500 V
- Resistance voltage: 750 V RMS, 60 Hz, 1 min
- Bandwidth: 250 MHz
- AWG: -
- Solid cable: -
- Outer diameter cable: -
- Operating temperature: -20°C ~ +85°C
- Storage temperature: -40°C ~ +60°C
- Housing material: metal
- Contacts: 3΅ gold-plated, 1:1 pin assignment
- Color: Silver
- Dimensions: 15.9 (W) mm

Packaging:
- Per 1 piece
