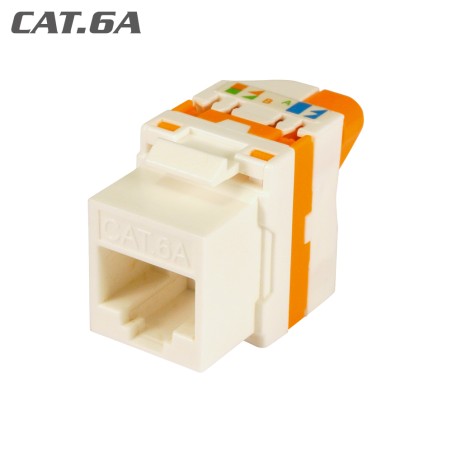

209921 Keystone Jack RJ45 UTP Cat.6A Female 180° Tool-Free white

The TELEVES 209921 Keystone Jack RJ45 UTP Cat.6A Female 180° Tool-Free white, is a RJ45 female connector Wing nut type UTP Cat 6A for data cables, reusable and easy to connect since no specific tools are required. The connector allows self-crimping by rotating the wing nut built into the rear part, with the fingers. It is compatible with PoE/PoE+/PoE++ (Power over Ethernet) technology, allowing the cable to power network devices. It is reusable up to 750 times (estimated), so it can be removed and reinstalled without deteriorating or losing functionality, designed for multiple-connection application. without losses. It is optimal for Cat 6A UTP, Cat 6 UTP, Cat 5e UTP and Cat 5 UTP and features a front side (180°) cable input, with labels with connection diagrams (A or B) on the connector, which has 50 microns gold-plated pins.

Technical features:
- Specification CAT 6Α, UTP, RJ45 female, Tool-Free installation
- PoE and PoE Plus: Yes
- Shielding: UTP
- Rated voltage: 125 V, Rated current: 1.5 A (max.)
- Cable output: 180°
- Contact resistance: 20 mΩ max.
- Insulation resistance: 1000 MΩ min.
- Resistance voltage: 750 V RMS, 60 Hz, 1 min
- AWG 23 ... 26 for Cat 6A UTP, Cat 6 UTP, Cat 5e UTP and Cat 5 UTP
- Housing material: Polycarbonate
- Color: White
- Dimensions: 16 (D) x 23 (W) x 30 (H) mm

Packaging:
- Per 10 pieces
