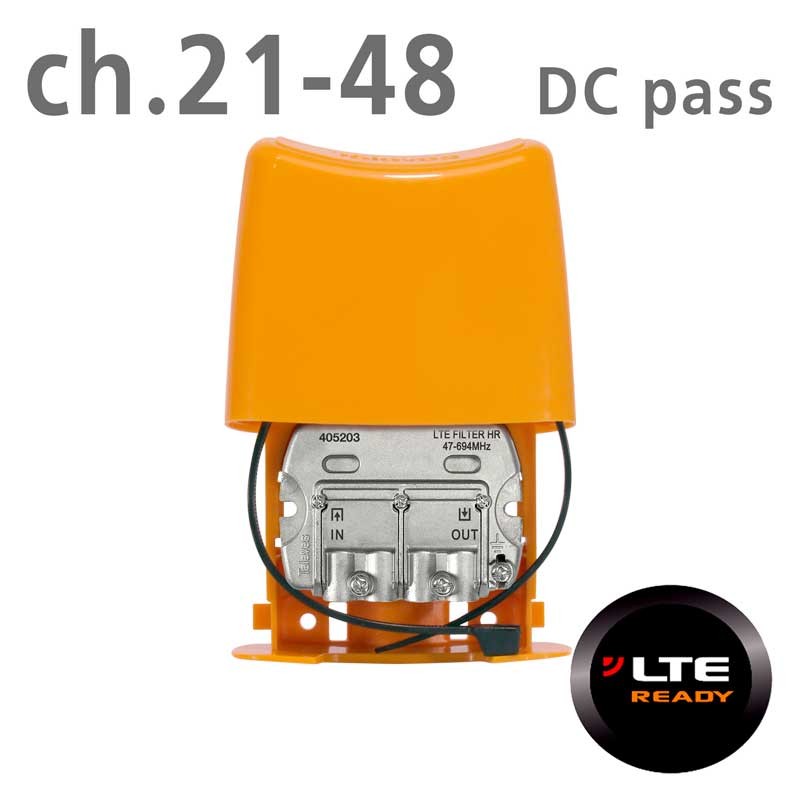

405203 LTE FILTER 5G (ch.21-48) Easy-F DC pass

Televes 405203 LTE/5G filter with DC PASS and high rejection against 5G/LTE interference from channel 48 UHF up. It also features EASY-F connections and special box for outdoor installation onto the mast. The built-in "EASY-F connectors can be used to plug the filter according to each installation point demand. With Grounding screw and special box for on mast installation.

Technical features:
- With DC PASS up to 300 mA
- Made from Zamak alloy
- With Grounding screw
- With special box for on mast installation
- Compact and light-weight size
- Connector (input) : EASY-F
- Connector type (output) : EASY-F
- Bandwidth pass-through MHz: 47-694, VHF, FM, UHF up to 48
- Bandwidth rejection MHz: 733-862, UHF 49 to 69
- Through Loss dB: 1
- Isolation of the rejected band dB >25
- Dimensions (Wid x Hei x Dep) mm 88 x 79 x 42
- Temperature functional index: -5 ...+45 Celsius
- Protection Index IP 23
