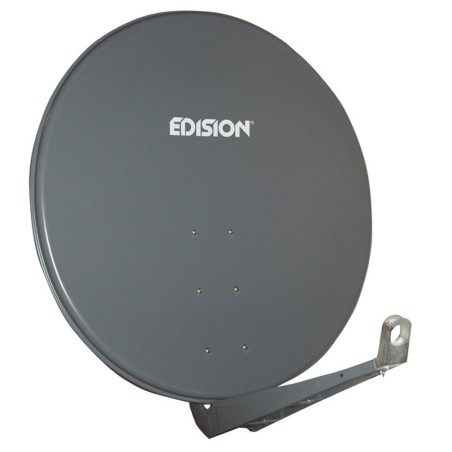

DISH 100 SUPER HD ALU GREY

Satellite antenna EDISION 100 SUPER HD ALU GREY. Exceptionally stable aluminum satellite dish, in grey color. It features a one-piece double-arm for LNB support, for maximum stability and lack of vibrations, even in the most adverse weather conditions. The tilt joint features a special bolt for precision securing of the elevation angle. Plus, the LNB bracket, is made of special metal alloy for extra stable hold. Its overall construction is especially robust to withstand installation even at places with very hard weather conditions.

Technical features:

- Color: Grey
- Height: 100 cm
- Width: 96 cm
- With special Fine Azimuth adjustment
- Material: Aluminium, with polyester powder coating
- Double peripheral curve, for extra torsional rigidity
- Mounting points hot galvanized & painted
- Support points on LNB bracket: 6
- Butterfly-type inox screws for quick installation and easy calibration
- With built-in mount for installing on ground/mast metal support
- Inside mast support diameter: 5 cm
- Die cast one-piece aluminium LNB bracket
- Exceptionally stable, with double one-piece LNB bracket
- Provides excellent & stable signal reception, by use of it's accessories for accurate calibration
- Wind load at 140 Km/h (Kg): 87.1
- Gain: 40.3dB
- Support base diameter: 30...60mm
- LNB stem diameter: 23...40mm
- Tilt angle (elevation): 10...90 degrees
