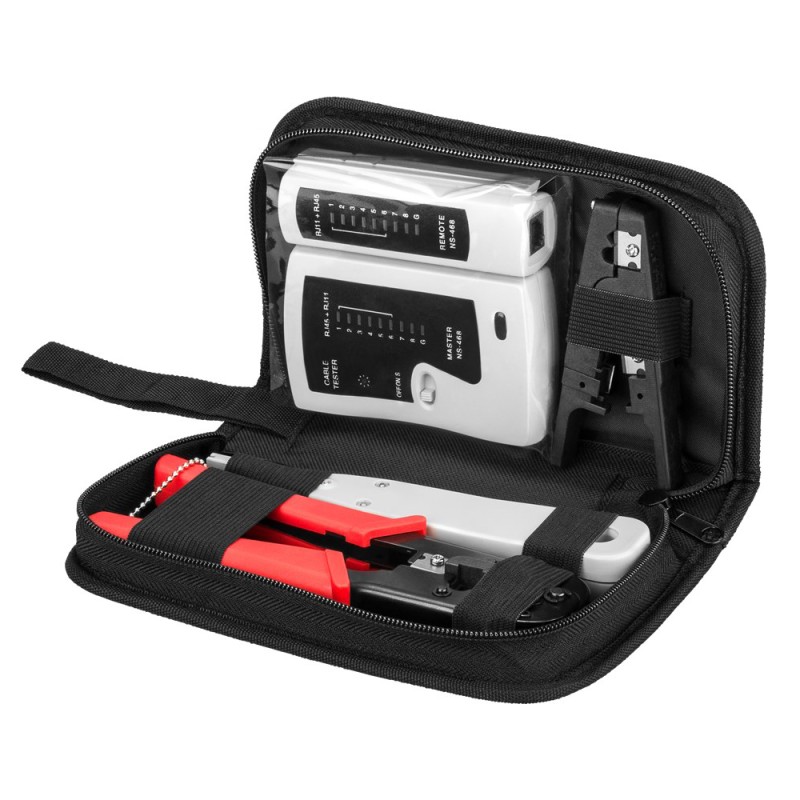

97790 Network Tool Set 4in1 for Cables RJ45/RJ11/RJ12

The 97790 Network Tool Set 4in1 for Cables RJ45/RJ11/RJ12, is a SET with tools and tester for RJ11, RJ12 and RJ45 cables which also includes IDC installation tool with drag hook and release blade for connecting CAT cables to network sockets, Wire stripper, Crimping tool and protective pouch, provides a fast and simple solution for checking the functionality of telephone and CAT cables in networks. In case of connection malfunction issue, the tester provides the technician with the option to check the individual cable cores, with respective LED indication, in order to provide a solution with a defective cable for continuity, short circuits, wire reversal and cable defects. Portable, works with 9V battery and has LED indication when it is operating.

Technical features:
- Network tester: RJ11, RJ12 and RJ45 cables
- IDC tool with: drag hook, release blade, screwdriver simple
- Wire stripper w/integrated cable cutter, up to AWG 22
- Crimping tool: 6/8-pin RJ, un-/shielded network/teleph. cable
- ON/OFF switch
- Tests individual cable cores
- Individual LED indication for each line
- 2 test speeds: Normal and Slow
- "G" LED indication for connected shielded cable
- For 6-pin/ 8-pin telephone/LAN cables
- RJ-11/RJ-12: 6P6C, 6P4C, 6P2C, 8P8C, 8P4C
- RJ-45: CAT-5, CAT-6, CAT-7, STP/FTP shielded, UTP unshielded
- Works with 9 V battery (not included)
- With protective carrying pouch
- Color: White
- Dimensions: 230 (W) x 130 (H) x 50 (D) mm
- Weight: 590 grams

Package includes:
- 68856 Network Cable Tester RJ45/RJ11/RJ12
- IDC installation tool with drag hook and release blade
- Wire stripper with integrated cable cutter
- Crimping tool for connecting 6-pin and 8-pin RJ plugs
- User Manual
- Protective pouch
